Chuckles Heavy-Duty Pipe Cutting Machine
Designed specifically for heavy and long pipes/tubes, it can cut various profiles such as round pipes, square pipes, and H-beams, It is compatible with pipes/tubes within 12.4 meters without residual material. Featuring high positioning accuracy and fast idle movement speed,it can work continuously for 24 hours, with low operating costs,combining both processing efficiency and economic benefits.
  • Zero Leftover Materials
  • High Efficiency

  • Low Cost

Inquire

Technical Parameter

Product ModelLY-12035LY-12045
Equipment Dimensions

19.1m*3.4m*2.8m

Length * Width * Heigh

19.1m*3.55m*2.94m

Length * Width * Height

Laser Power6kw~20kw6kw~20kw
Rotational Speed≤35r/min≤25r/min
Idle Speed50m/min
Positioning Accuracy≤0.05mm/1000mm
TailingsWhen the processing length of the last piece is ≥2m
Single-piece Load-bearing1.5T
Processing Pipe TypeRound tubes,Square tubes, Rectangular tubes, Channel steel, and H-beams/l-beams

Cutting Sample

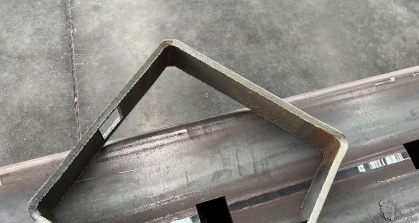

  • Sample1

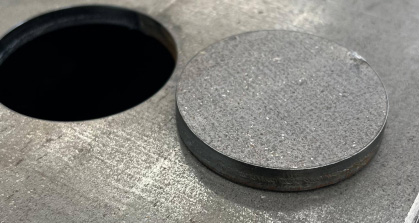

  • Sample2

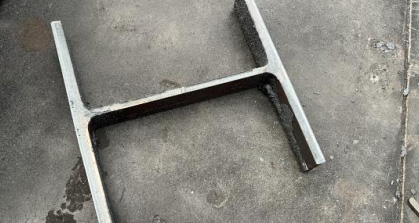

  • Sample3
